Powder Palletizing – Extruder, Spherodizer & Palletizer

Uniform Kneading, Mixing and Extruding Process

Application & Process :

Extruder is used to convert wetted powder / Dough material into uniform size extrudes / granules with addition of binders. Applications are mainly pharmaceuticals, chemicals, Agro Chemical, ceramics, herbals, polymers, catalysts, food, sugar industries etc.

Axial Press extruder has either single or twin screws, depending on the output required, which transfers the materials to the flat die. The thickness of the die can be provided as different thickness to deliver a range of compressive energies. The axial die perforation size range available from 0.7 to 5 mm with varying thickness up to 5 mm.

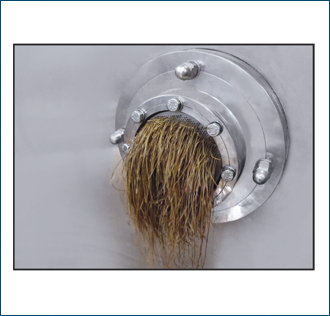

The screws transport the wetted powders/ dough to the straight sieve/die which can be provided with varying thicknesses as can the holes for extruding. The extrusion takes place at the face of the mesh. Our axial dies are available from 0.7 - 5 mm with varying thickness up to 5 mm.

Salient Features :

  • Designed as per cGMP – Current Good Manufacturing Practices & Non GMP STANDARD Model.
  • Contact parts in AISI 316, AISI 304 or MS as desired by customer.
  • Capacities from 1 Kg to 5000 Kg Industrial Productions.
  • Different models in extruders such as Single Screw Axial extruder, Double Screw Axial Extruder, Cone extruder, Radial extruder.
  • Length of extrusions is adjustable.
  • Up to 96% uniformity (substantially formulation dependant).
  • Change of extrusion diameter/ Pellet size by changing die roller.
  • Continuous cooling arrangement during extrusion operation for pressing roller.

Optional Features :

  • Option for A.C Drive with digital RPM indicator for screw.
  • Option for Direct Inline with Spherodizer.
  • Jacketed chamber for cooling or Heating.

Safety Features :

  • Total drive transmission system enclosed
  • Overload relay Protection and Emergency stop button
Technical Specification :
Model
No. of Screw
Discharge
Capacity –kg/hour
Motor- HP
Extruder size mm
PSEXF-50
Single
Front
PSEXF-75
Single
Front
PDEXF-75
Double
Front
PDEXF-100
Double
Front
PDEXF-130
Double
Front
Please contact us for more details.
PDEXF-180
Double
Front
PDEXF-230
Double
Front
PSEXS-50
Double
Side
PDEXS-75
Double
Side
PDEXS-100
Double
Side
PDEXS-130
Double
Side

PDEXS-180
Double
Side

PDEXS-280
Double
Side

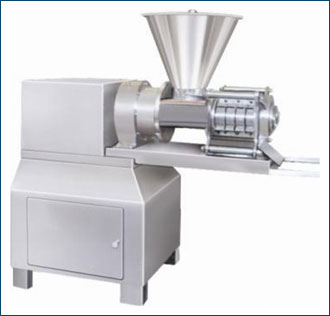

Image of Single Screw Axial Extruder PSEXF-50

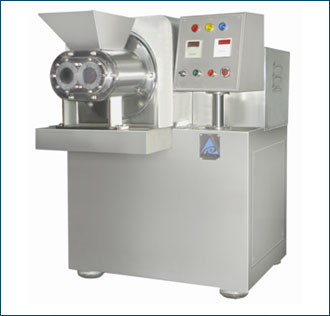

Double Screw Axial Extruder PDEXF-75
Single Screw Axial Extrude

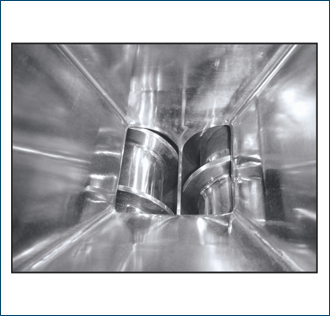

Double Screw Axial Extruder

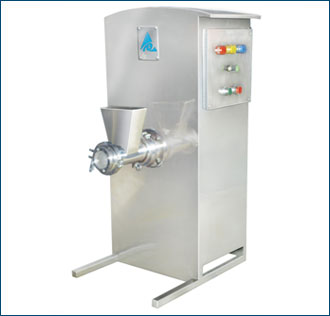

Image of Single Screw Axial Extruder with Side Discharge PDEXS-130

Single Screw Axial Extruder with Side Discharge
